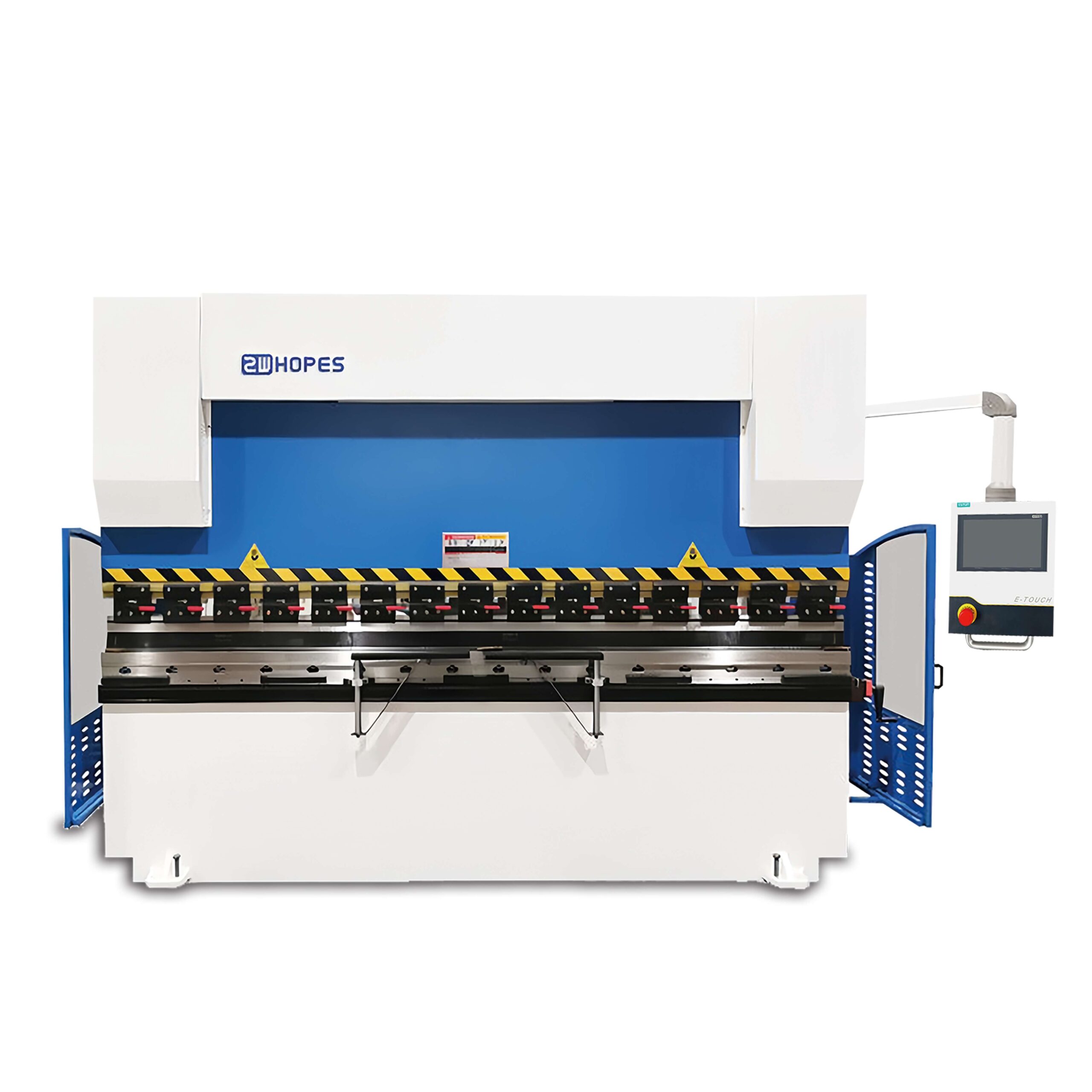

ZW-TPBS Series Torsion-bar Double Servo CNC PRESS BRAKE
ZWHOPES® Double Servo Hydraulic CNC Press Brake is designed with the torsion bar, servo diver driving the Y axis and the two cylinders move up and down simultaneously. The X axis (stroke and distance of the back gauge) is driven by servo motor. The machine adopts an integrated hydraulic system, which is more reliable and easy to maintain. The fuselage adopts the simplified design of the European Union, and is integrally welded and integrally formed, and the stress is relieved through repeated treatment. The single mode and reversing and maintenance time of the machine can be controlled by the time relay. and the adjustment amount is displayed by DA41s or TP10s. The machine is equipped with a safety fence and electronic interlocking device to ensure safe operation.
Stable and Durable Performance Of The Machine Body
- The machine frame integrated welding.
- The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
- Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment.
- Shot blast to remove rust and anti-rust treatment.
Scientific design
- Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
- Possibility to add options and upgrades on the configuration, at later stage.

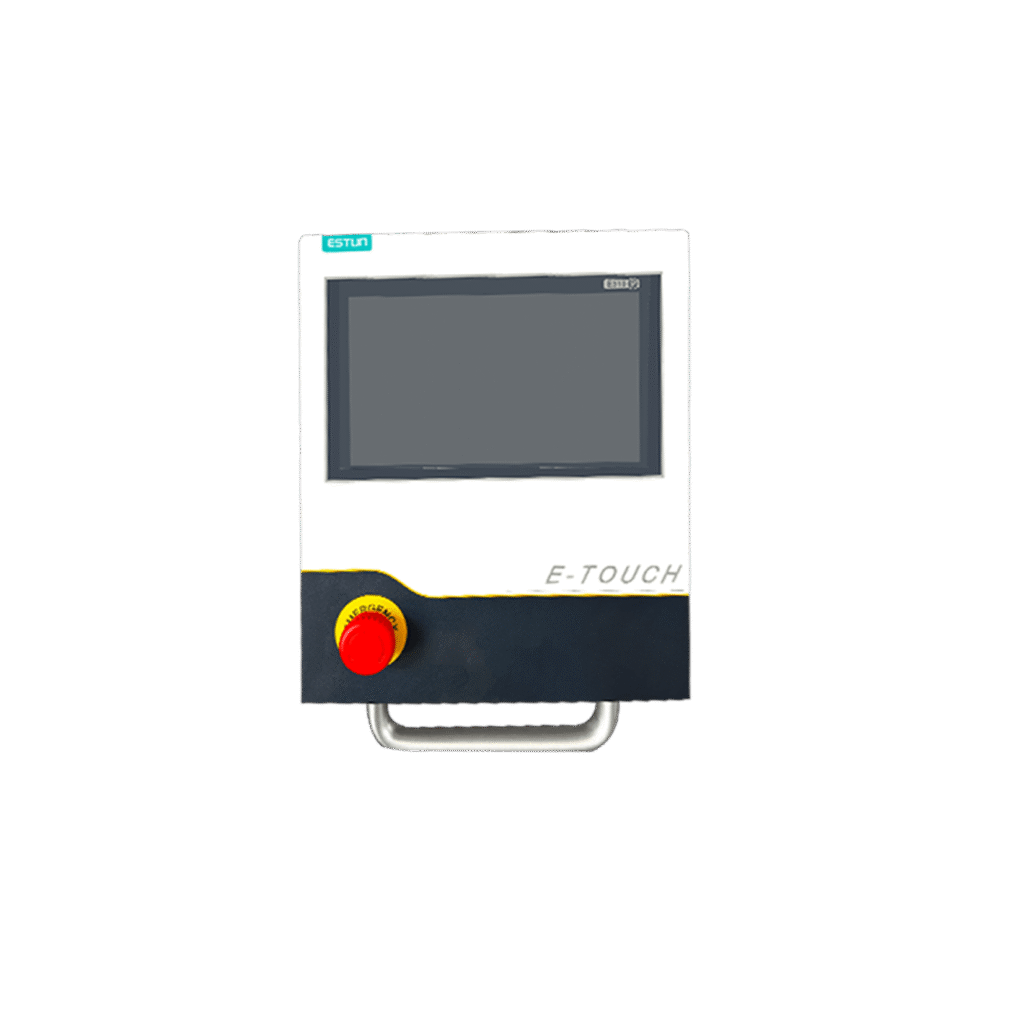

E310P Control System
- Standard configuration: Y, X, and R-axis servo axis control, C-axis is hydraulic compensation/mechanical compensation in two models.
- Built-in port monitoring/diagnostic function, hydraulic valve group logic freely configurable, I/O port freely configurable, simplifying external wiring.
- Precise Y-axis angle programming calculation function, optimized algorithm logic.
- Built-in mold library and material table, improving the accuracy of angle calculation.
- Equipped with the ED3L series servo, which has superior performance and stable quality.
- Safety zone protection, collision detection, and R-axis collision avoidance positioning function.
- Time lock function, simple operation, and powerful functionality.
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals.
Highlights
High Efficient Working Table
You can use the whole bending length as there are no interference contours.

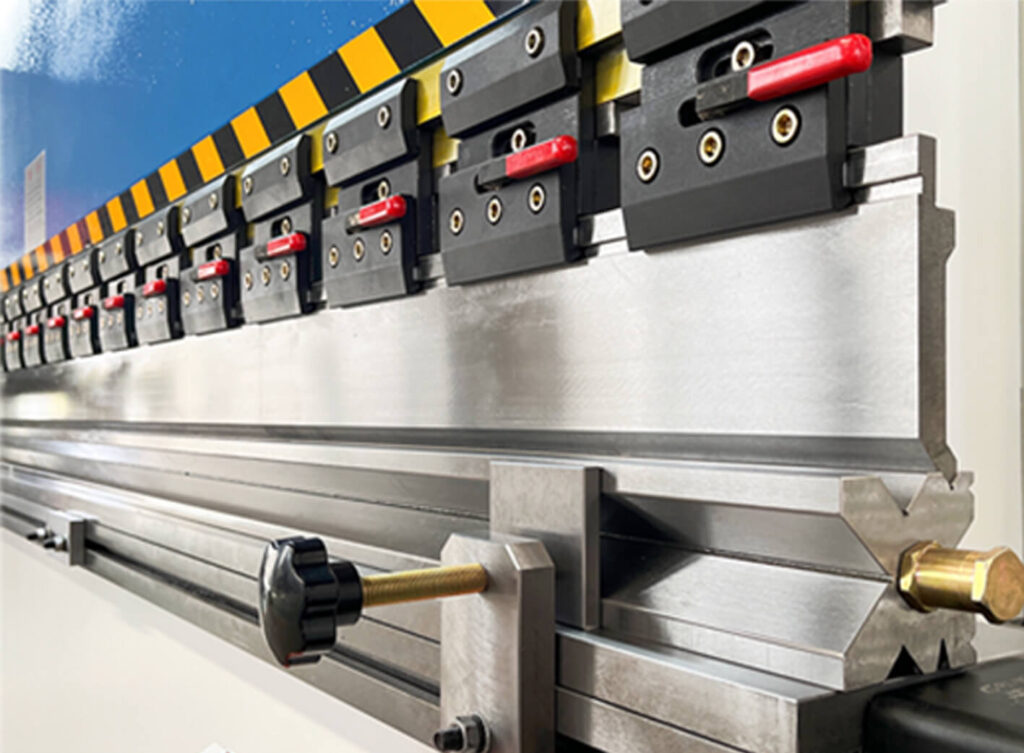

CNC customized mold
Quick Clip
Fast tool changes thanks to vertical set up，to reduce your set up times.
Supporting Arms
The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
Hydraulic Valve
(Rexroth from Germany)
GIVI Grating ruler(from Italy)
precise positioning stroke travel

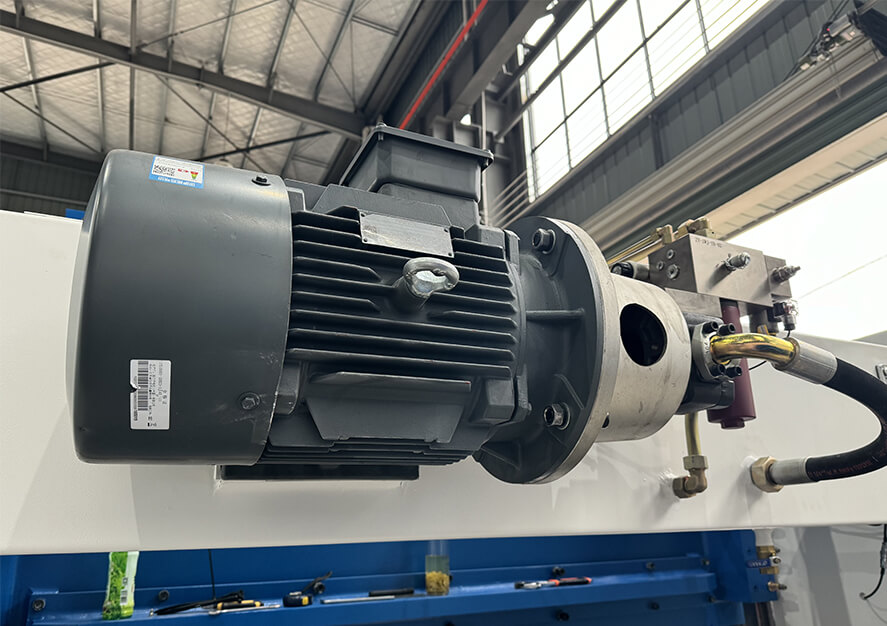

Three-Phase Asynchronous Main Motor
Square Mold (Standard)

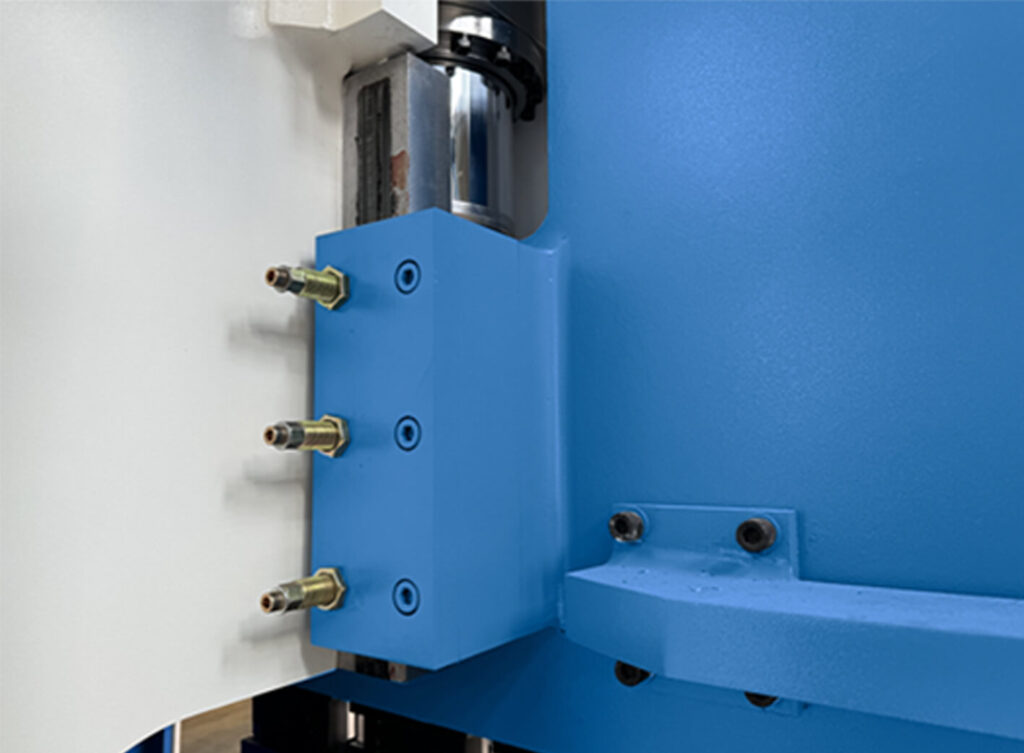

Slider Guide

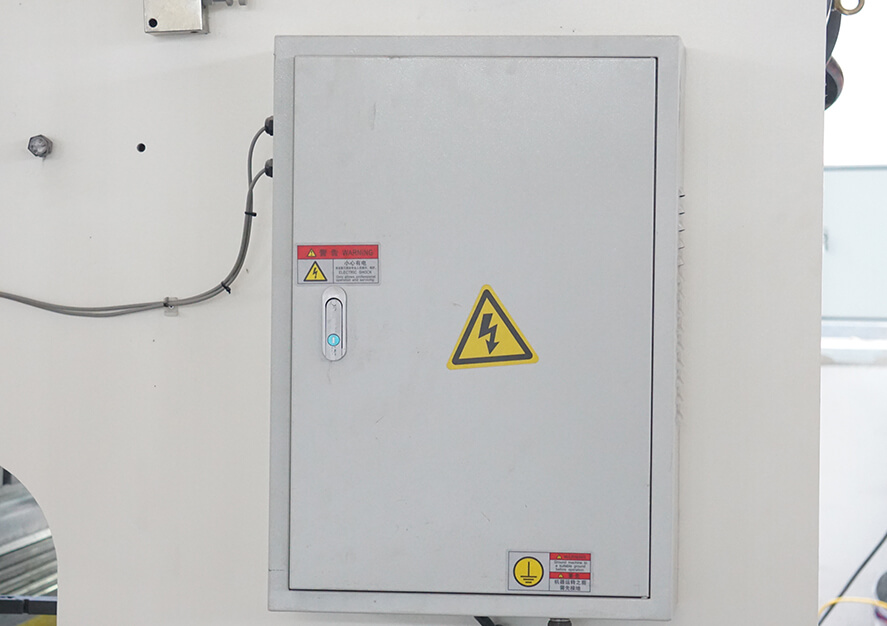

Electric Cabinet
Schneider Electric Components

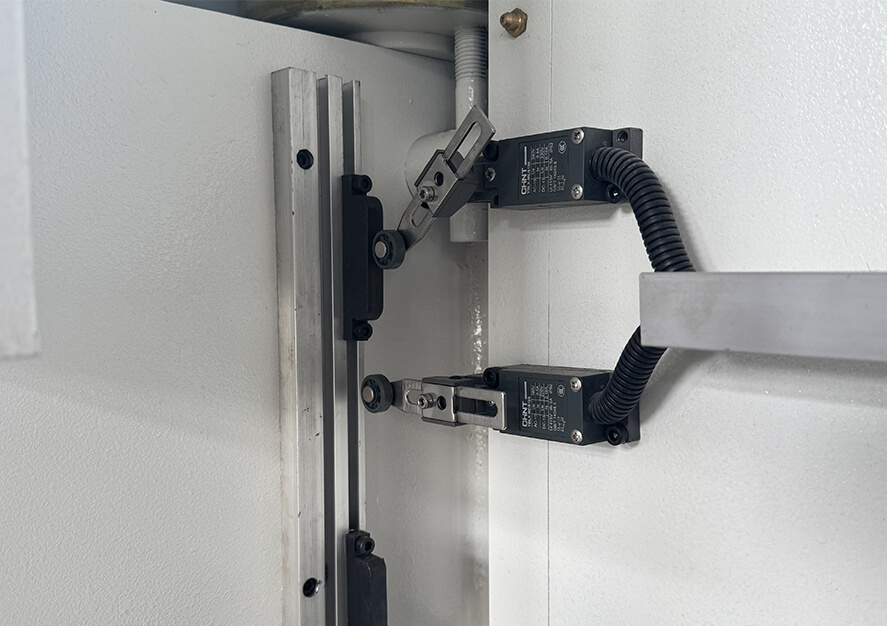

Travel Switch

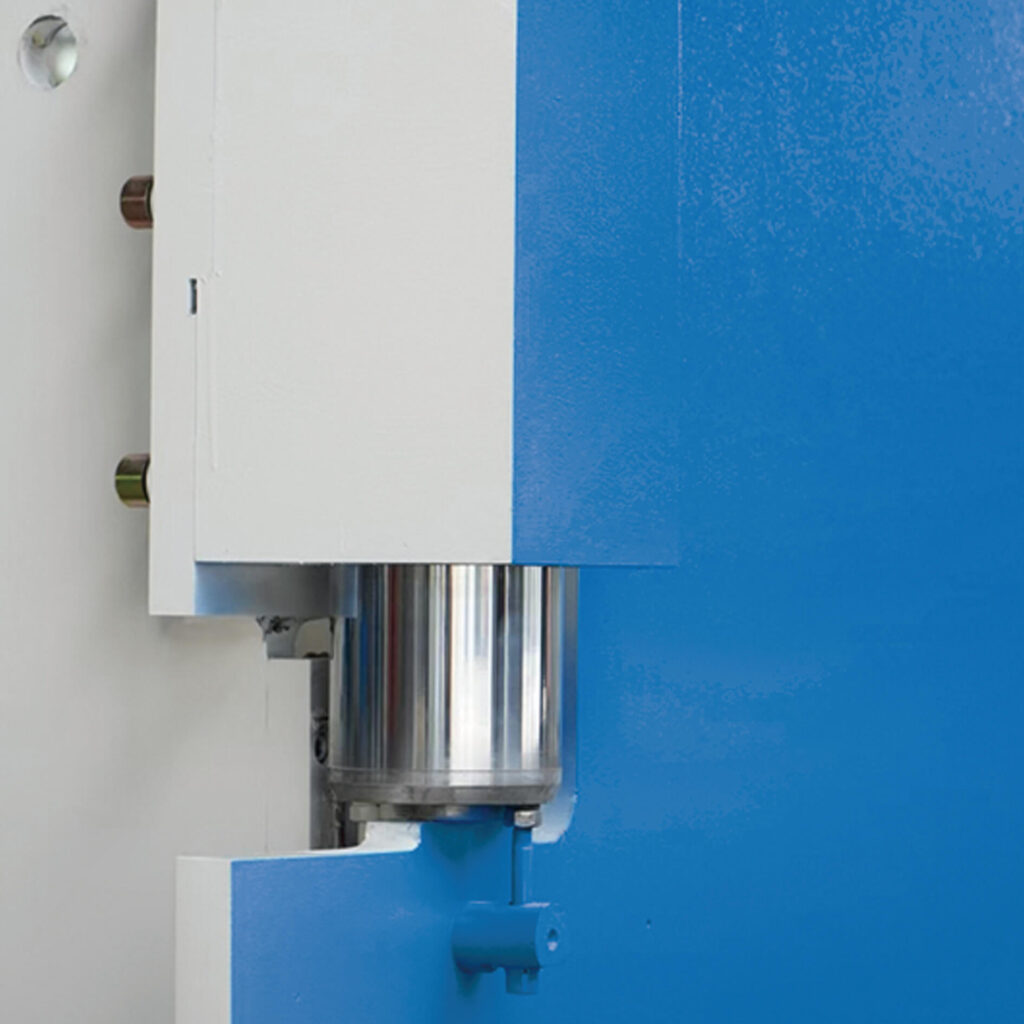

Top Brand Hydraulic Cylinder
Tube Connector
Foot Switch

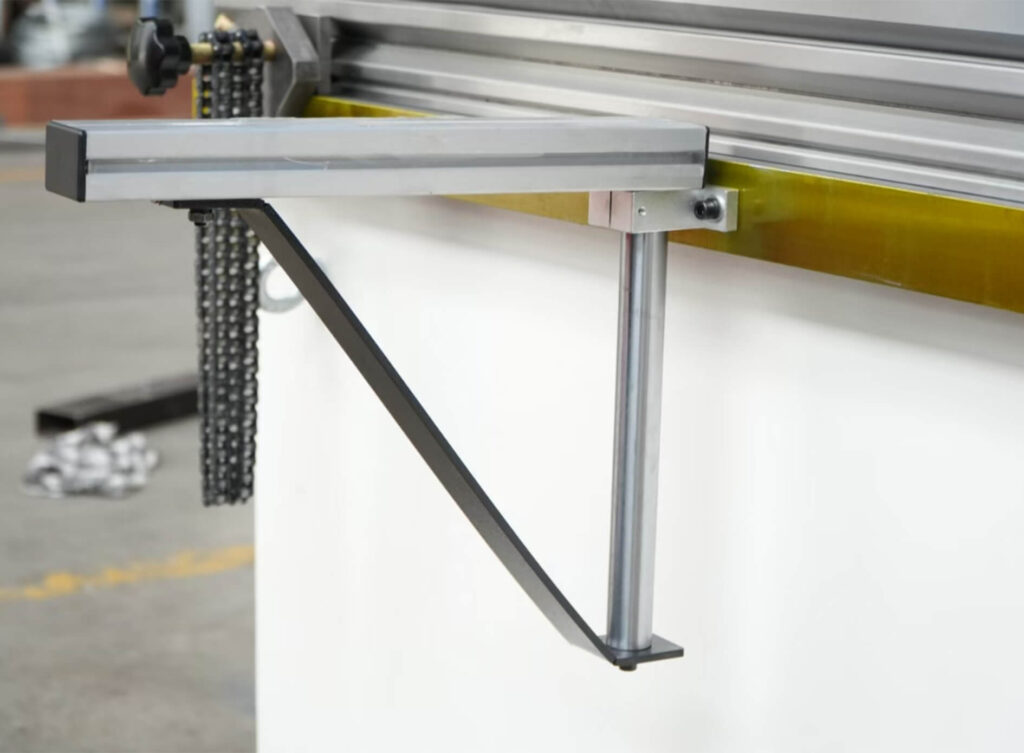

Front Support
High efficient and powerful back gauge
Servo motor drive back gauge
Servo drive back gauge system to increase speed.and energy saving.
The ball screw and linear guide
Dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
Double linear guides and integrated support beam
To improve finger movement accuracy.
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals.
Back Gauge System
√ 2 AXIS BACK GAUGE (X,R)
√ 4 AXIS BACK GAUGE (X,R,Z1,Z2)
√ 6 AXIS BACK GAUGE (X1,X2,R1,R2,Z1,Z2)
Technical Specifications
| Model | Bending Pressure (kn) | Bending Length (mm) A | Column Distance (mm) B | Throat Depth (mm) D | Slider Stroke (mm) C | Max Opening Height (mm) E | X-axis Max Distance (mm) | Sliding Front Supporting Arms (Pcs) | Back stopper (PCS) | Main Motor (kw) | LengthxWidth x Height (mm) | Weight (T) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30T/1600 | 300 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1620 | 2000 |
| 40T/1600 | 400 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1820 | 2500 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2200×1200*1900 | 2750 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1200x1900 | 3000 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500*1200*2000 | 3400 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1300x2210 | 4000 |
| 63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 500 | 2 | 3 | 5.5 | 3200x1300x2210 | 4800 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 500 | 2 | 2 | 7.5 | 2500x1400x2300 | 5000 |
| 80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 500 | 2 | 3 | 7.5 | 3200x1500x2300 | 6000 |
| 80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 500 | 2 | 4 | 7.5 | 4000x1500x2400 | 7000 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 500 | 2 | 2 | 7.5 | 2500x1600x2400 | 6000 |
| 100T/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 7.5 | 3200x1600x2600 | 6800 |
| 100T/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 7.5 | 4000x1600x2600 | 8000 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 11 | 3200x1600x2600 | 7000 |
| 125T/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 11 | 4000x1600x2600 | 8500 |
| 160T/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1700x2700 | 10000 |
| 160T/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1700x2800 | 11000 |
| 160T/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1900x3100 | 13500 |
| 160T/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6300x1900x3200 | 18500 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1950x2800 | 11000 |
| 200T/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1950x2800 | 12500 |
| 200T/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1950x3000 | 14000 |
| 200T/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6000x1950x3300 | 20000 |
| 250T/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 18.5 | 3250x2000x3200 | 18500 |
| 250T/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 18.5 | 4000x2000x3400 | 20000 |
| 250T/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 18.5 | 5000x2000x3400 | 23000 |
| 250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 18.5 | 6000x2000x3400 | 27000 |
| 300T/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 22 | 3200x2000x3450 | 20500 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 22 | 4000x2000x3450 | 22000 |
| 300T/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 22 | 5000x2000x3450 | 25000 |
| 300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 22 | 6000x2000x3450 | 28500 |
| 400T/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 500 | 2 | 3 | 30 | 3200x2180x3400 | 22500 |
| 400T/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 30 | 4000x2180x3400 | 25000 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 30 | 5000x2180x3500 | 29000 |
| 400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 30 | 6000x2180x3800 | 34000 |
| 500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 45 | 5050x3500x3700 | 42000 |
| 500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 45 | 6050x3500x3700 | 54000 |
| 600T/4000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 500 | 2 | 4 | 55 | 4050x4500x3700 | 44000 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 55 | 6050x4500x3700 | 60000 |
