ZW-TPB Series Torsion-bar Simple NC PRESS BRAKE

ZWHOPES® EH2020 Series Press Brake is a new CNC bending machine launched by ZWHOPES Group in 2020, and is suitable for manufacturers with high precision and cost performance requirements. ZWHOPES® 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.

Stable and durable performance of the machine body

The basic type of NC press brake
The system is simple and easy to operate
Well-known brand core components
Suitable for a large number of simple bending jobs
CE certification
Standard: Estun E21 control system

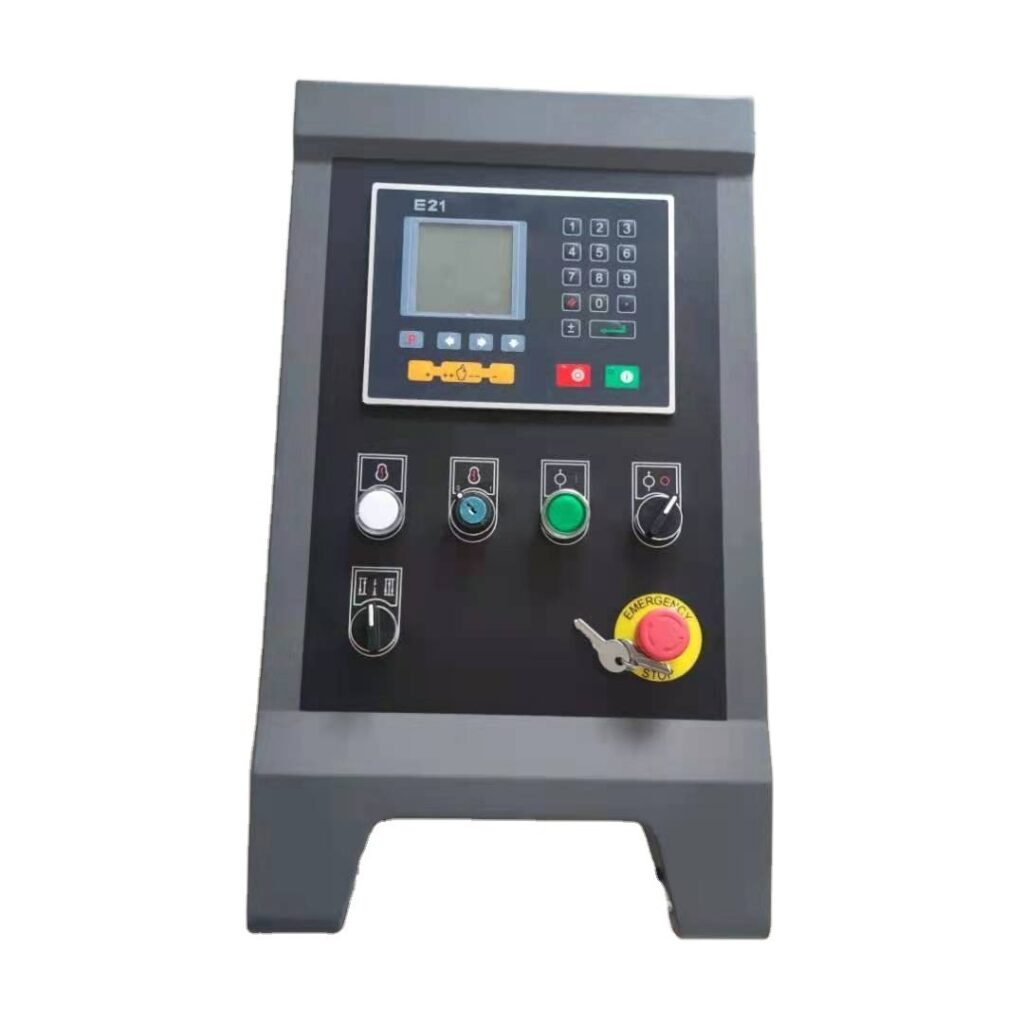

Estun E21 control system

Monochrome LCD Box Panel
Integral factor programmable freely
Automatic positioning control
Spindle allowance offset
Internal time relay
Stock counter
Back gauge position display, resolution in 0.05mm

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals.

If you would like to have a question then get in touch today, we are ready to assist 24/7.
We welcome your cooperation and we will develop with you.

Highlights

High Efficient Working Table

You can use the whole bending length as there are no interference contours.

CNC customized mold

Quick Clip

Fast tool changes thanks to vertical set up，to reduce your set up times.

Supporting Arms

The ergonomic support brackets and led work area illumination serve to maximize your operating ease.

Hydraulic Valve
(Rexroth from Germany)

GIVI Grating ruler(from Italy)

precise positioning stroke travel

Three-Phase Asynchronous Main Motor

Square Mold (Standard)

Slider Guide

Electric Cabinet

Schneider Electric Components

Travel Switch

Top Brand Hydraulic Cylinder

Tube Connector

Foot Switch

Front Support

High efficient and powerful back gauge

Servo motor drive back gauge

Servo drive back gauge system to increase speed.and energy saving.

The ball screw and linear guide

Dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.

Double linear guides and integrated support beam

To improve finger movement accuracy.

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals.

If you would like to have a question then get in touch today, we are ready to assist 24/7.
We welcome your cooperation and we will develop with you.

Back Gauge System

√ Y1+Y2+X(optional)

√ Y1+Y2+X+R(optional)

√ Y1+Y2+X+R+Z1+Z2(optional)

√ Y1+Y2+X+R+Z1+Z2+X1(optional)

√ Y1+Y2+X1+X2+R1+R2+Z1+Z2(optional)

√ Y1+Y2+X1+X2+R1+R2+Z1+Z2+V(optional)

Technical Specifications

Model	Bending Pressure (kn)	Bending Length (mm) A	Column Distance (mm) B	Throat Depth (mm) D	Slider Stroke (mm) C	Max Opening Height (mm) E	X-axis Max Distance (mm)	Sliding Front Supporting Arms (Pcs)	Back stopper (PCS)	Main Motor (kw)	LengthxWidth x Height (mm)	Weight (T)
30T/1600	300	1600	950	230	100	320	300	2	2	3	1800x1200x1620	2000
40T/1600	400	1600	950	230	100	320	300	2	2	3	1800x1200x1820	2500
40T/2200	400	2200	1850	230	100	320	500	2	2	5.5	2200×1200*1900	2750
40T/2500	400	2500	1850	230	100	320	500	2	2	5.5	2500x1200x1900	3000
50T/2500	500	2500	1850	230	100	320	500	2	2	5.5	250012002000	3400
63T/2500	630	2500	1900	250	100	320	500	2	2	5.5	2500x1300x2210	4000
63T/3200	630	3200	2560	250	100	320	500	2	3	5.5	3200x1300x2210	4800
80T/2500	800	2500	1990	300	100	320	500	2	2	7.5	2500x1400x2300	5000
80T/3200	800	3200	2560	320	100	350	500	2	3	7.5	3200x1500x2300	6000
80T/4000	800	4000	3200	320	100	350	500	2	4	7.5	4000x1500x2400	7000
100T/2500	1000	2500	1990	320	120	350	500	2	2	7.5	2500x1600x2400	6000
100T/3200	1000	3200	2600	320	150	400	500	2	3	7.5	3200x1600x2600	6800
100T/4000	1000	4000	3200	320	150	400	500	2	4	7.5	4000x1600x2600	8000
125T/3200	1250	3200	2600	320	150	400	500	2	3	11	3200x1600x2600	7000
125T/4000	1250	4000	3200	320	150	400	500	2	4	11	4000x1600x2600	8500
160T/3200	1600	3200	2580	320	200	460	500	2	3	11	3200x1700x2700	10000
160T/4000	1600	4000	2900	320	200	460	500	2	4	11	4000x1700x2800	11000
160T/5000	1600	5000	3900	320	200	460	500	2	5	11	5000x1900x3100	13500
160T/6000	1600	6000	4900	320	200	460	500	2	6	11	6300x1900x3200	18500
200T/3200	2000	3200	2480	320	200	460	500	2	3	11	3200x1950x2800	11000
200T/4000	2000	4000	2900	320	200	460	500	2	4	11	4000x1950x2800	12500
200T/5000	2000	5000	3900	320	200	460	500	2	5	11	5000x1950x3000	14000
200T/6000	2000	6000	4900	320	200	460	500	2	6	11	6000x1950x3300	20000
250T/3200	2500	3200	2450	400	250	590	500	2	3	18.5	3250x2000x3200	18500
250T/4000	2500	4000	2900	400	250	590	500	2	4	18.5	4000x2000x3400	20000
250T/5000	2500	5000	3900	400	250	590	500	2	5	18.5	5000x2000x3400	23000
250T/6000	2500	6000	4900	400	250	590	500	2	6	18.5	6000x2000x3400	27000
300T/3200	3000	3200	2450	400	250	590	500	2	3	22	3200x2000x3450	20500
300T/4000	3000	4000	2900	400	250	590	500	2	4	22	4000x2000x3450	22000
300T/5000	3000	5000	3900	400	250	590	500	2	5	22	5000x2000x3450	25000
300T/6000	3000	6000	4900	400	250	590	500	2	6	22	6000x2000x3450	28500
400T/3200	4000	3200	2400	400	250	590	500	2	3	30	3200x2180x3400	22500
400T/4000	4000	4000	2900	400	250	590	500	2	4	30	4000x2180x3400	25000
400T/5000	4000	5000	3900	400	250	590	500	2	5	30	5000x2180x3500	29000
400T/6000	4000	6000	4900	400	250	590	500	2	6	30	6000x2180x3800	34000
500T/5000	5000	5000	3900	400	250	590	500	2	5	45	5050x3500x3700	42000
500T/6000	5000	6000	4900	400	320	590	500	2	6	45	6050x3500x3700	54000
600T/4000	6000	4000	2900	400	320	590	500	2	4	55	4050x4500x3700	44000
600T/6000	6000	6000	4900	400	320	590	500	2	6	55	6050x4500x3700	60000
