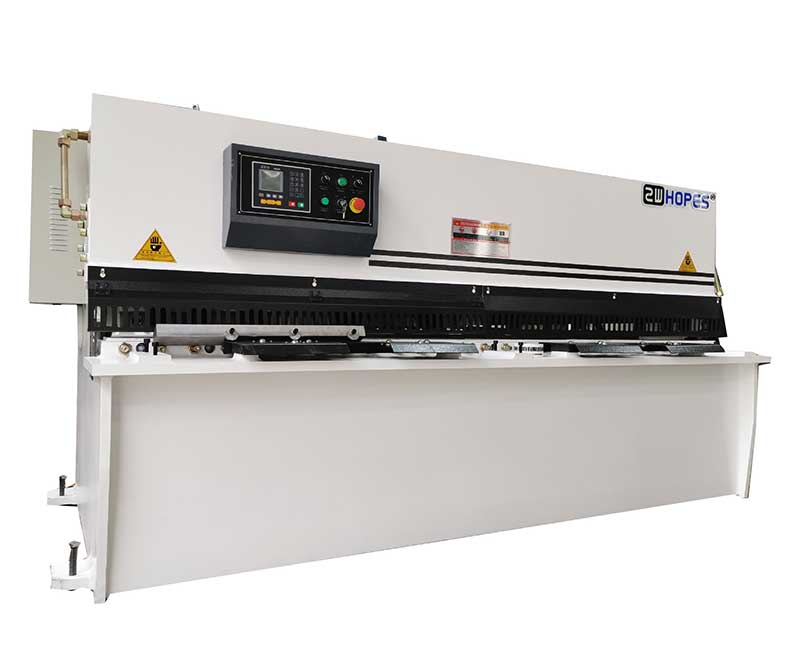

Hydraulic CNC Swing Beam Shear
- LCD interactive interface display is more humanized.
- Debugging free function, only need to count twice.
- Frequency conversion positioning, PID algorithm, one step in place.
- 9 products can be programmed, and 9 work steps can be entered for each product.
- One click restore factory settings, no longer afraid of beginners to adjust parameters.
- Sequential counting effect, counting is more humanized.
ESTUN E21S Control System
- Monochrome LCD Box Panel.
- Integral factor programmable freely
- Automatic positioning control •Spindle allowance offset
- Internal time relay
- Stock counter
- Backgauge position display, resolution in 0.05mm
- High Definition LCD screen, one page displaying programming parameters
- X, Y axis positioning, also can be adjusted manually as required
Highlights
Press cylinder, small cutting gap
Supporting Platform（Ball type）reduces friction
Safety light certain（Optional）
Tube Joints
Ball screw liner guide
Adjustment of blade gap(motor)
Back gauge,Manual lifting to make space for large materials
Turbo reducer
Hydraulic valve block with pressure display
Main Motor, fully enclosed, self-fan cooling, asynchronous motor.
Electric Components
Foot switch
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals.
Safety & Reliability
All components are certified in accordance with European standards，mainly from Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 (+ N) is used.
1.Workbench protection
Laser protection: The blade stops when obstacle detected by laser.
2.Mechanical back
Light curtain protection or Point protection or safety fence, to warn people the dangerous working areas.
3.Worktable sides
Safety Fence to prevent people from careless entry.
Technical Specifications
| Type | Cutting Thickness (mm) | Cutting Width (mm) | Cutting Angle (°) | Material Strength (KN/cm) | Stopper Adjust Range (mm) | Power (KW) | Dimension L×W×H(mm) |
|---|---|---|---|---|---|---|---|
| 4×2500 | 4 | 2500 | 1°30´ | ≤450 | 20~500 | 5.5 | 3040×1550×1550 |
| 6×3200 | 6 | 3200 | 1°30´ | ≤450 | 20~500 | 7.5 | 3040×1550×1550 |
| 8×4000 | 8 | 4000 | 1°30´ | ≤450 | 20~600 | 7.5 | 3840×1710×1620 |
| 10×6000 | 10 | 6000 | 1°30´ | ≤450 | 20~800 | 15 | 6500×2100×2300 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 20~600 | 18.5 | 3240×1900×1900 |
| 16×4000 | 16 | 4000 | 2°30´ | ≤450 | 20~800 | 18.5 | 4650×2150×2200 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 20~800 | 22 | 4150×2350×2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 20~1000 | 37 | 3200×2700×2900 |
| 30×3200 | 30 | 3200 | 3°30´ | ≤450 | 20~1000 | 40 | 4200×2500×2600 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 20~1000 | 90 | 4300×3300×3000 |
